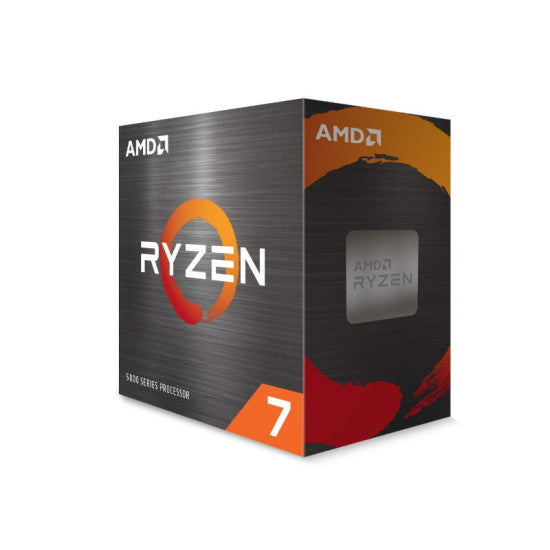

AMD Ryzen 7 5700G Processor With Radeon Graphics

eneral Specifications

Platform: Boxed Processor

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 7 5000 G-Series Desktop Processors with Radeon™ Graphics

# of CPU Cores: 8

# of Threads: 16

Max. Boost Clock: Up to 4.6GHz

Base Clock: 3.8GHz

Total L2 Cache: 4MB

Total L3 Cache: 16MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Unlocked for Overclocking: Yes

CPU Socket: AM4

Thermal Solution (PIB): Wraith Stealth

Max. Operating Temperature (Tjmax): 95°C

OS Support: Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

PCI Express® Version: PCIe® 3.0

System Memory Type: DDR4

Memory Channels: 2

System Memory Specification: Up to 3200MHz

Graphics Capabilities

Graphics Model: Radeon™ Graphics

Graphics Core Count: 8

Graphics Frequency: 2000 MHz

Warranty

3 Years
