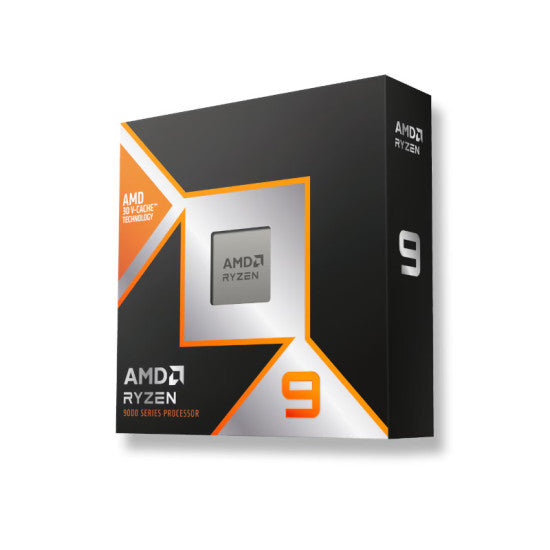

AMD Ryzen 9 9900X3D Processor with Radeon Graphics (12 Cores, 24 Threads, Max. Boost Clock Up To 5.5GHz, AM5 Socket and 140MB Cache)
AMD Ryzen 9 9900X3D Processor with Radeon Graphics (12 Cores, 24 Threads, Max. Boost Clock Up To 5.5GHz, AM5 Socket and 140MB Cache)
Couldn't load pickup availability
|
Specification |
|
|
General Specifications |
Name: AMD Ryzen 9 9900X3D Family: Ryzen Series: Ryzen 9000 Series Form Factor: Desktops , Boxed Processor Market Segment: Enthusiast Desktop AMD PRO Technologies: No Regional Availability: Global Former Codename: Granite Ridge AM5 Architecture: Zen 5 # of CPU Cores: 12 Multithreading (SMT): Yes # of Threads: 24 Max. Boost Clock : Up to 5.5 GHz Base Clock : 4.4 GHz L1 Cache: 960 KB L2 Cache: 12 MB L3 Cache: 128 MB Default TDP: 120W Processor Technology for CPU Cores: TSMC 4nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET Package Die Count: 3 Unlocked for Overclocking : Yes AMD EXPO Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen Master Support: Yes CPU Socket: AM5 Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions:  AES , AMD-V , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 Thermal Solution (PIB): Not Included Recommended Cooler: Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C *OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Connectivity |
Native USB 3.2 Gen 2 (10Gbps) Ports: 4 Native USB 2.0 (480Mbps) Ports: 1 PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type: DDR5 Memory Channels: 2 Max. Memory: 192 GB System Memory Subtype: UDIMM Max Memory Speed                2x1R     DDR5-5600                2x2R     DDR5-5600                4x1R     DDR5-3600                4x2R     DDR5-3600 ECC Support: Yes (Requires mobo support) |
|
Graphics Capabilities |
Graphics Model: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200 MHz USB Type-C® DisplayPort™ Alternate Mode: Yes |
|
Key Features |
AMD EXPO Technology AMD Ryzen Technologies |
|
Warranty |
3 Years |
