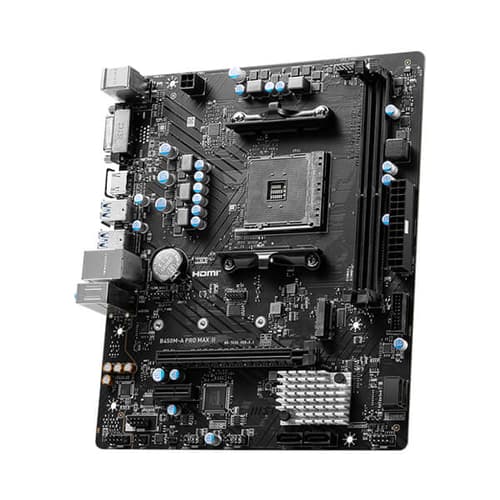

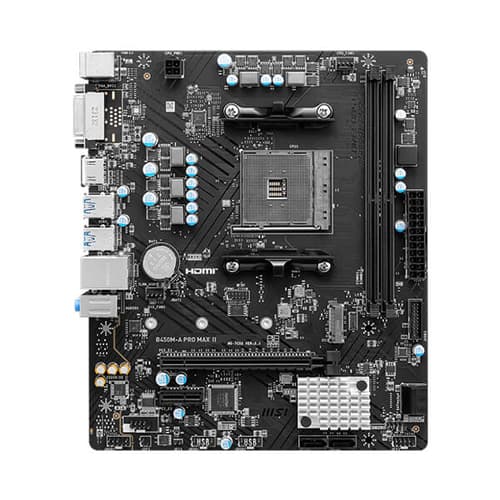

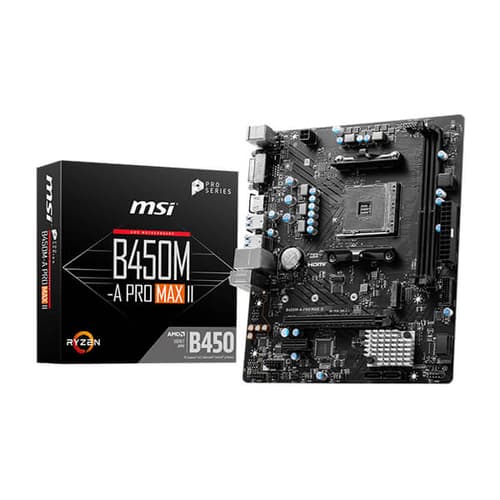

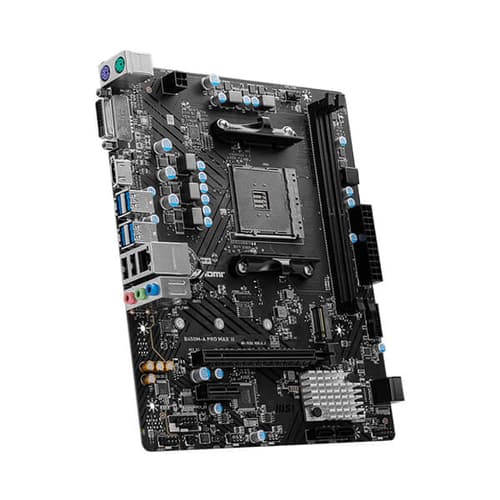

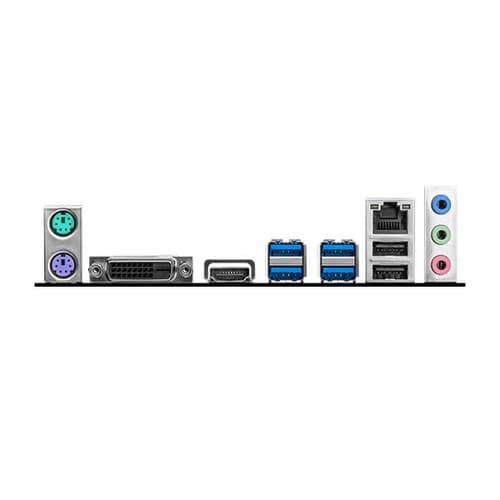

Motherboard Platform AMD Socket AM4 Cpu Type Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 2000 Chipset B450 Memory Speed up to 4133 Max Memory Support 64 GB Supported Memory Type DDR4 Channel Supported Dual Channel Memory Feature Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Graphics Port 1x HDMI, 1x DVI Expansion Slots 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) Back Panel I/O Ports Keyboard/Mouse DVI-D HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0 Internal I/O Connector 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports Form Factor Micro-ATX Warranty 3 Years
