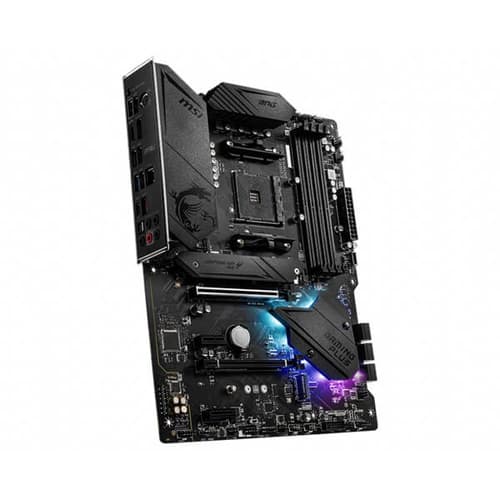

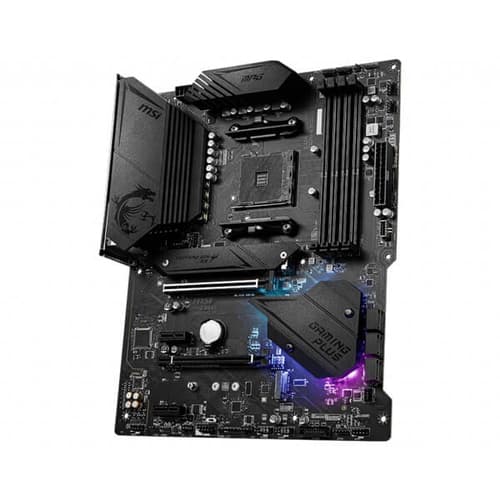

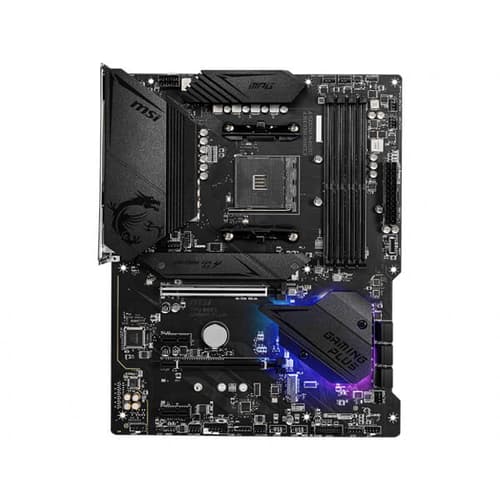

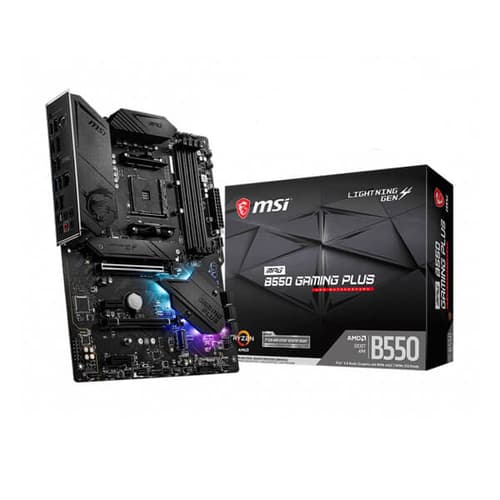

MSI MPG B550 Gaming Plus Motherboard

MSI MPG B550 Gaming Plus Motherboard

Motherboard
Platform    AMD
Socket    AM4
Cpu Type    Ryzen 5000,Ryzen 4000G,Ryzen 3000
Chipset    B550
Memory Speed    up to 4400+
Max Memory Support    128 GB
Supported Memory Type    DDR4
Channel Supported    Dual Channel
Memory Feature    Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Graphics Port    1x HDMI,1x DisplayPort
Expansion Slots    1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots

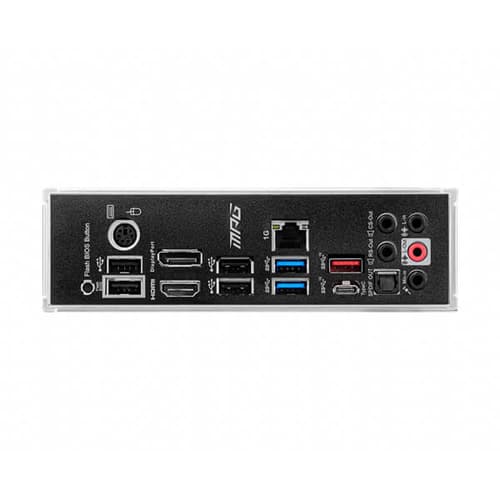

Back Panel I/O Ports    PS/2 Combo Port
DisplayPort
LAN Port
USB 3.2 Gen 2 10Gbps (Type-A)
HD Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Internal I/O Connector    1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Form Factor    ATX
Warranty    3 Years
